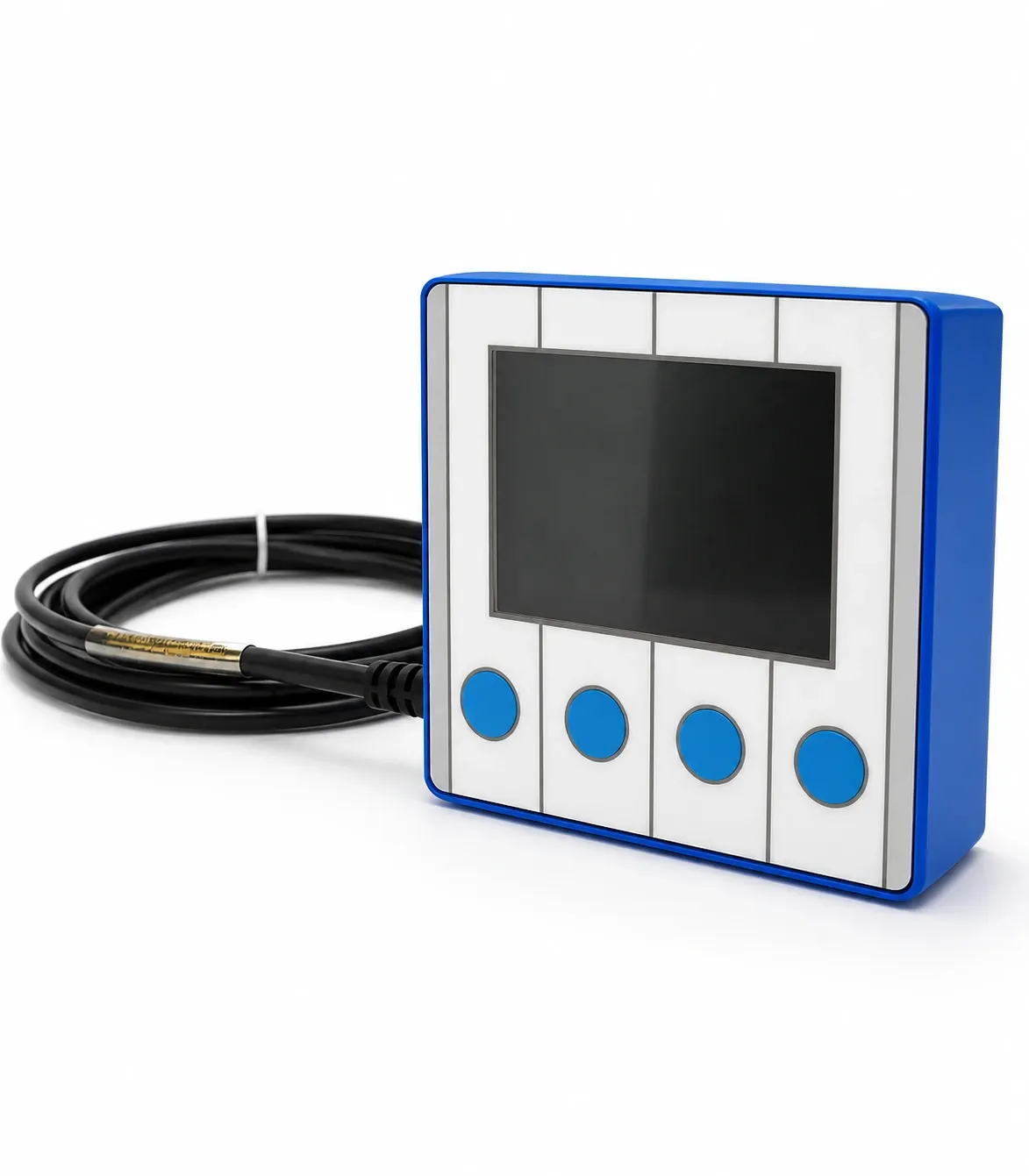

Display DISP22

Name: Display DISP22
Price: 200.0 EUR

The FT HMI DISP22 is a compact industrial panel designed for visualization and control of automated systems. It combines a high-brightness color display with multi-protocol communication and a built-in runtime environment for rapid HMI application development and seamless integration into industrial automation systems.

KEY FEATURES

● Intuitive Interface: 2” LCD Display for easy and quick command entry and navigation

● High Resolution and Clarity: Crystal-clear visualization of complex diagrams, graphs, and textual data

● Real-Time Diagnostics: Instantly identify machine status, alarms, and potential issues

● Data Visualization: Converts complex manufacturing data into easily understandable text, graphs and trends

● Comprehensive Control: Single centralized interface for managing, adjusting, and monitoring all machine and process functions

200,00 €

In den Warenkorb

Auf die Wunschliste

Entwickelt in der EU

Qualität, Zuverlässigkeit und transparente Entwicklungsprozesse

Technischer Support

Direkte Unterstützung durch den Hersteller

Sichere Bestellung

Geschützte und zuverlässige Zahlungsabwicklung

Technical Data

DISPLAY SPECIFICATIONS

Display size	2 inches
Display technology	LCD
Resolution	240×320 pixels
Lifetime	20000 Hrs

ELECTRICAL SPECIFICATIONS

Nominal input voltage	24VDC
Input voltage range	19-28VDC
Power consumption (typical)	1.68W
Protection	Reverse polarity

COMMUNICATION AND INTERFACE

Communication protocol(s)	CANopen
Interface port(s)	CAN Bus, USB-C
Digital inputs (qty)	2 (non-isolated)
Digital outputs (qty)	2 high side switches

FIRMWARE AND CONFIGURABILITY

Processor / CPU	ARM Cortex-M33 @ 250 MHz
Screen / project configuration	TouchGFX / VSCode
Firmware update method	Over USB

MECHANICAL SPECIFICATIONS

Dimensions (W × H × L)	64×64×25 mm
Weight	68 gr

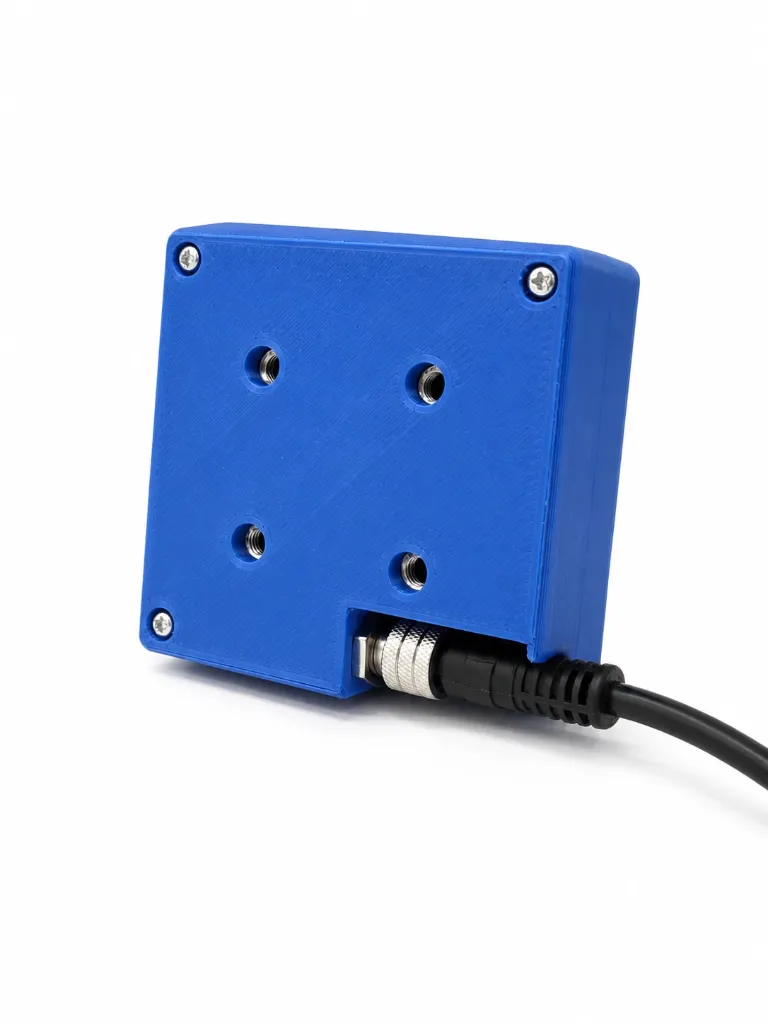

Mounting type	4x M5
Connectors	M8 8-pol.
Ingress protection (IP rating)	IP65 (front) / IP20 (rear)

Datenblatt

DISP22 Datasheet

PDF . 1,2 MB

Download
